electric pallet Jack electric forklift electric forklift truck

Short Description:

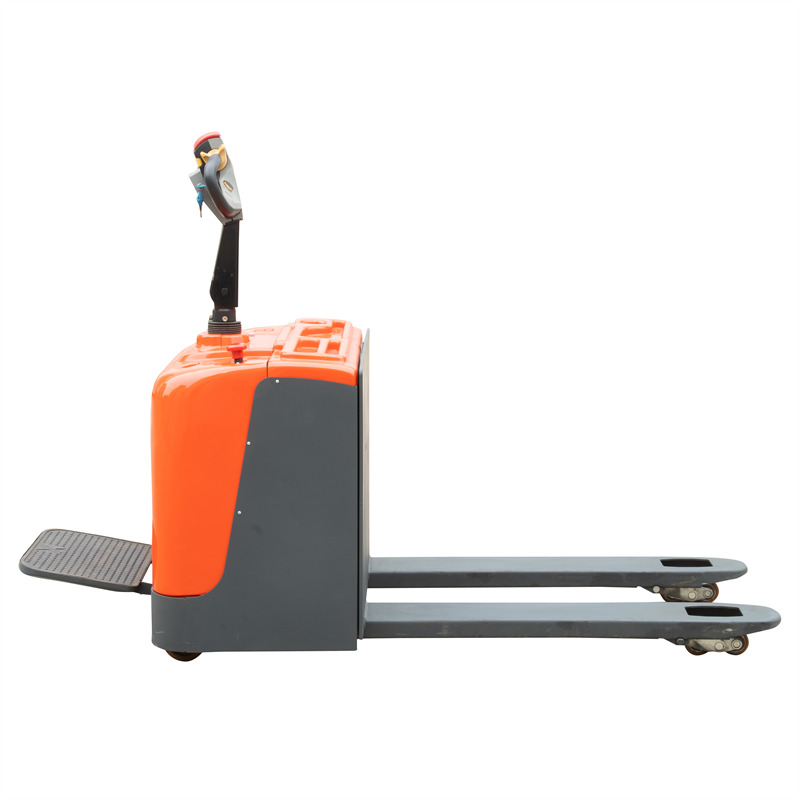

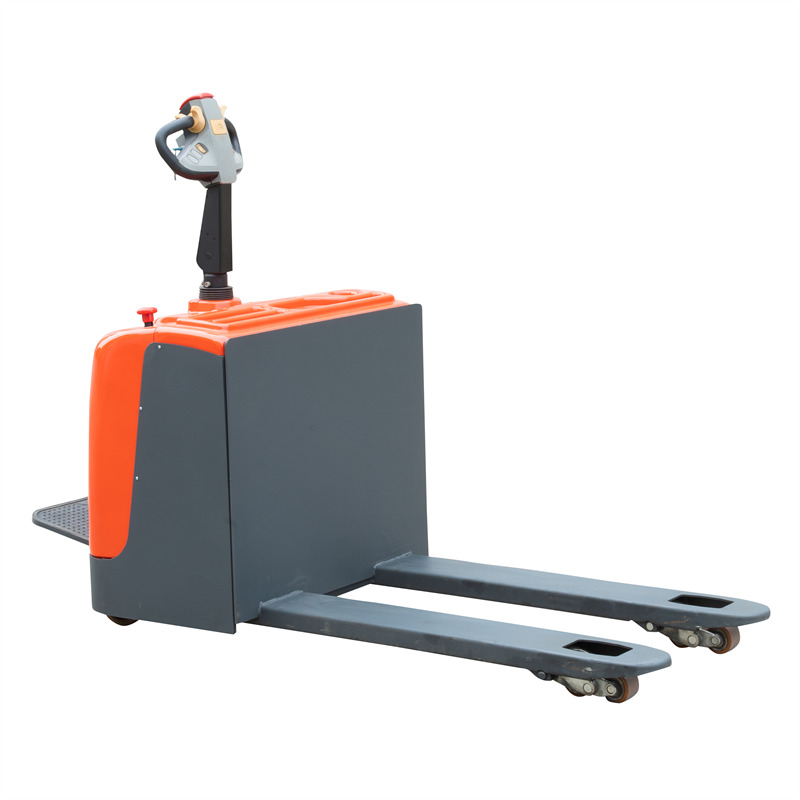

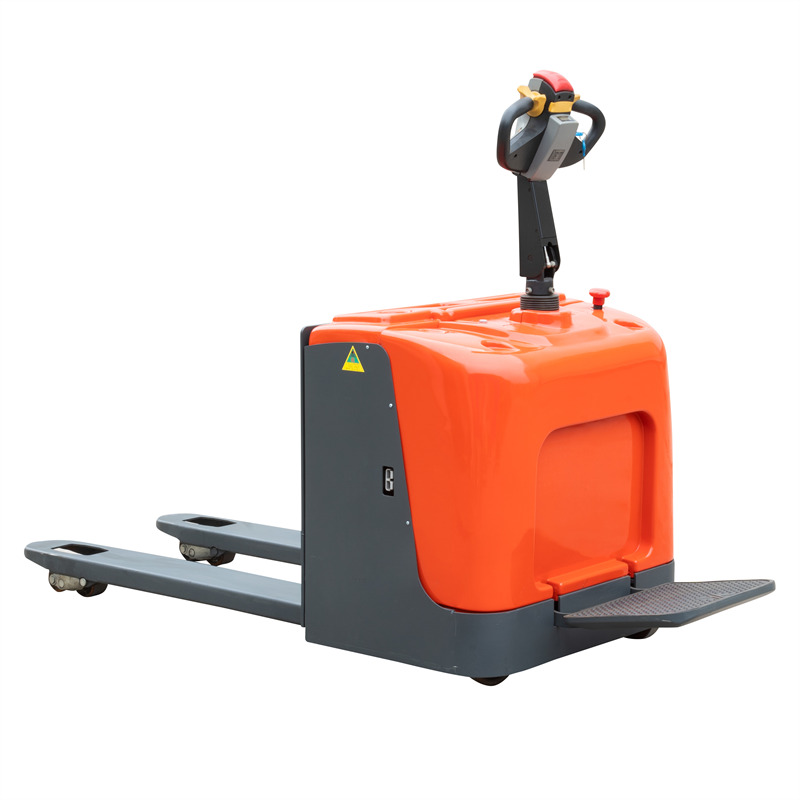

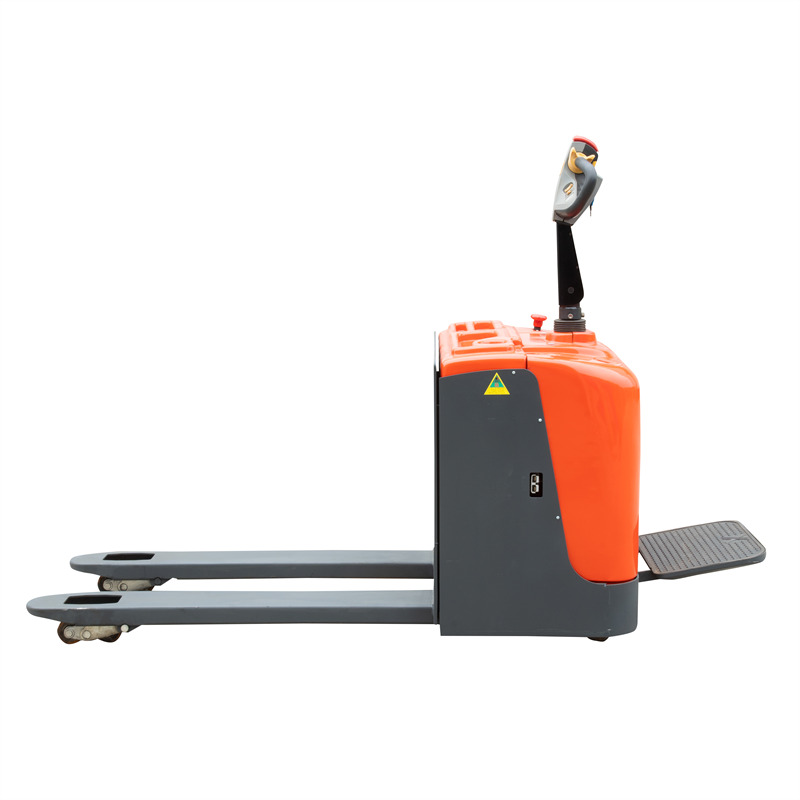

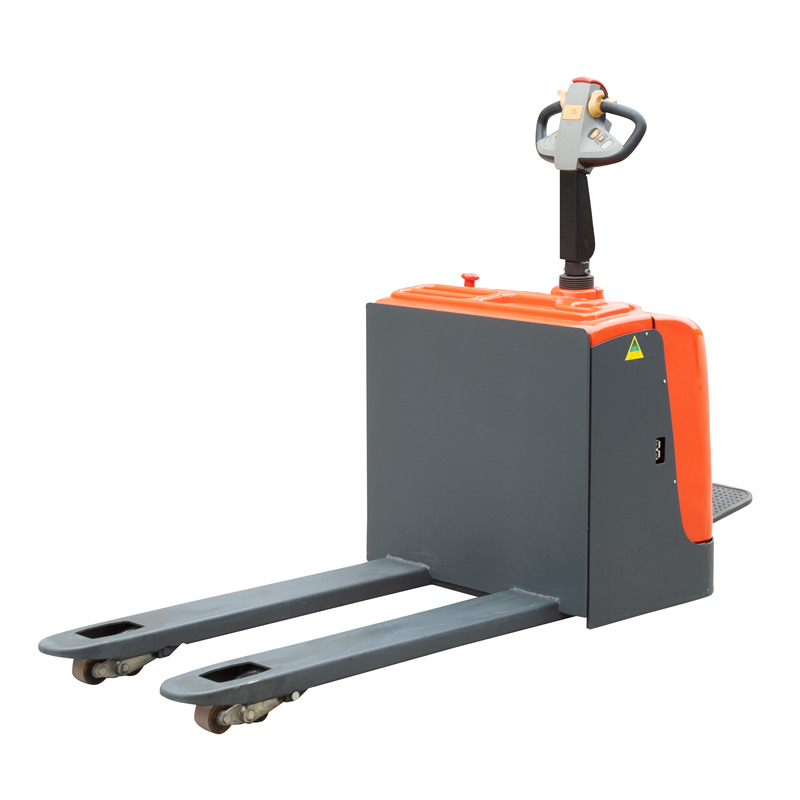

This heavy duty type standing on electric pallet truck CBD-A25Y, the maximum loading capacity is 2500kg, easy operate and no pollution.

MOQ: 1pcs

FOB Price: $2250-$2500/pcs

Product Detail

Product Tags

Products advantage

1.The handle bar is equipped with an emergency reverse switch for safe operation;
2.Electric quantity display;
3.Emergency power off switch;
4.Turtle-shaped slow speed switch;
5.Infinitely variable speed control;
6.The spring adjustment structure balance wheel is wear resistant and has good stability;
7.AC motor, no need to replace the carbon brush, with good ramp start performance;
8.The motor has better dustproof and waterproof effects, making the brakes and motors more durable and reliable;
9.The station pedal has a good shock absorber effect,comfortable operation and not easy to fatigue.

Product parameter

Model Unit CBD-A25Y
Rated load Kg 2500
Load center distance C(mm) 600
Weight(with battery) Kg 500
Wheel material   PU
Front wheel size (mm) φ250*80
Rear wheel size (mm) φ80*60
Lifting height of fork above ground H3(mm) 205
Min. height of fork above ground H13(mm) 85
Overall length L1(mm) 1800
Fork size s/e/l(mm) 55*180*1200
Overall width B1(mm) 820
Fork width B5(mm) 550/680
Channel width Ast(mm) 2500
Radius of turning circle Wa(mm) 1800
Driving speed, full load/no load   Km/h 4.5/5.8
Lifting speed, full load/no load m/s 0.05/0.1
Maximum climbing ability ,full load/no load % 3/5
Service brake   Electromagnetic brake
Driving motor power kw 1.5(AC)
Lifting motor power kw 2.2(DC)
Battery 24v Ah 120

Suitable pallet


About us

Taixing Andylift Equipment Co.,Ltd. was founded in 2009, we have powerful R&D ability and advanced production technology that make sure of product quality. We have accumulated abundant experience of production and marketing for electric stacker ,pallet truck , electric forklift etc. So many years of experience makes us professional in the field. We provide the most comprehensive range of products with stable quality, first class after-sale service, technical and parts supports by the professional and high efficiency team working behind. We have already exported various kinds of products to overseas countries and regions such as Australia, Brazil, Germany, England, America etc
