electric forklift ,electric forklift truck

Short Description:

5ton four wheel electric forklift ,5ton four wheel electric forklift truck

MOQ: 1pcs

FOB Price: $28000-$32000/pcs


Product Detail

Product Tags

Products description

With the successful manufacture of the heavy sit down type four wheel electric forklift CPD50,it represent powerful research and development strength of the entire company. About  CPD50 ,the maximum loading capacity can up to  5000kg, the standard lifting height is 3000mm,easily operation,the power come from battery,zero emission, no pollution, protect the environment.

Products parameter

1.1  Model

Unit

CPD5030

1.2 Power



battery

1.3 Operator type



sit down

1.4 Loading capacity

kg

5000

1.5 Loading center distance

mm

500

1.6 Wheel base

mm

1930

1.7 Door frame dip angle(front/rear)

°

6°/12°

1.8 Weight(include battery)

kg

7350

2.1 Tyre type



pneumatic tyre

2.2 Front tyre

mm

8.25-15

2.3 Rear type

mm

7.00-12

2.4 Front wheel distance

mm

1180

2.5 Rear wheel distance

mm

1190

3.1 Overall length

mm

4195

3.2 Overall width

mm

1515

3.3 Overall height(the fork is lowest)

mm

2370

3.4 Overall height(the fork is highest)

mm

3830

3.5 Lifting height

mm

3000

3.6 Height of retaining frame

mm

2370

3.7 Front overhang

mm

572

3.8 Fork size

mm

125/45/1070

3.9 Fork outer width(adjustable)

mm

250-1000

3.10 Min.ground clearance

mm

120

3.11 Channel width(1000*1200)

mm

5367

3.12 Turning radius

mm

3375

4.1  Driving speed  full/empty

km/h

13/14

4.2  Lifting speed  full/empty

mm/s

280/340

4.3  Max gradient with full load

%

15%

5.1  Driving motor power

kw

17

5.2  Lifting motor power

kw

20

5.3  Battery capacity

V/Ah

80v/500ah

5.4  use time

h

6.5

5.5  Control mode



AC

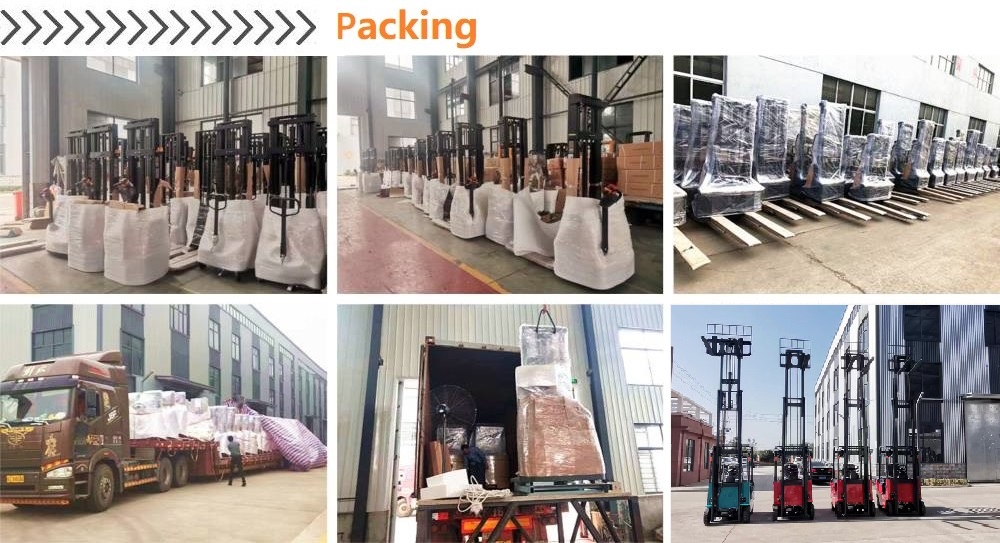

Our packaging


Our equipment

1、Q:May I visit your company?
A:We are always happy to serve you. our factory is located in Taizhou ,jiangsu province.there are international flights nearby and the traffic is well developed,if you would like to order our products and visit our company ,pls contact us for an appointment

2、Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.

3、Q:Do you offer custom design?
A:Custom design is surely available,we have rich experience in customizing forklifts

4、Q:How about the sample policy?
A:We can accept sample order for testing quality,but sample and express charge should on customer’s account
