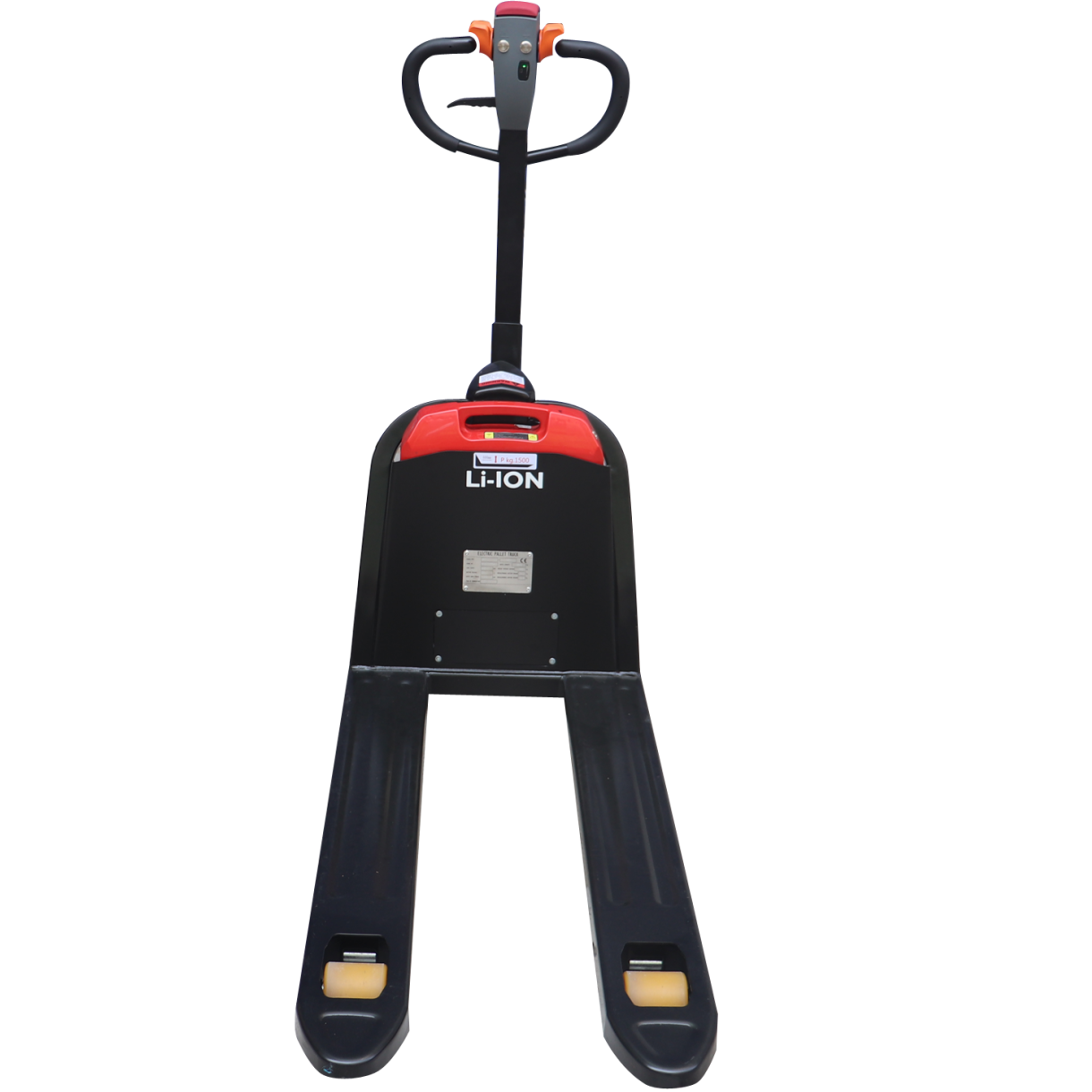

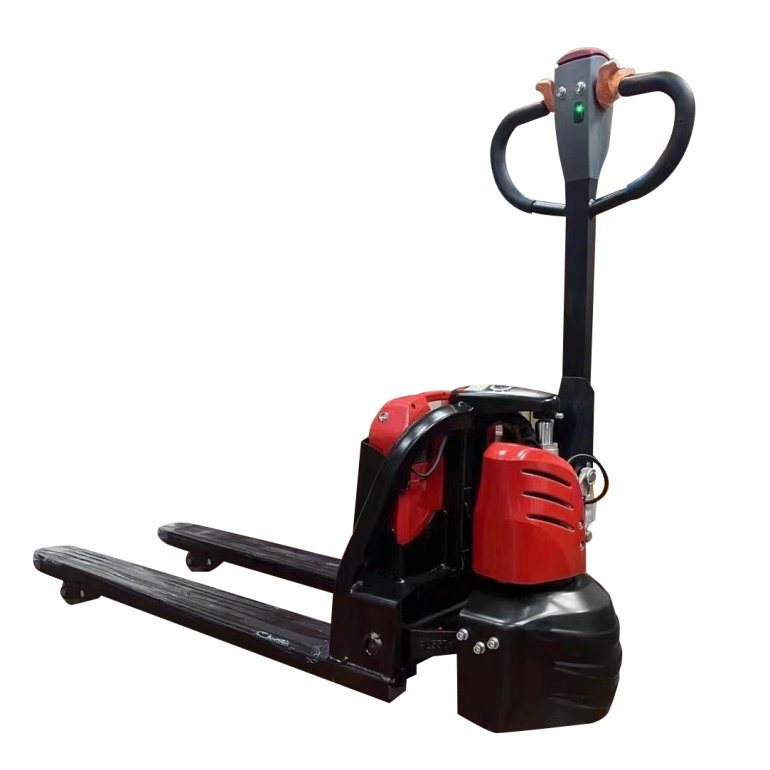

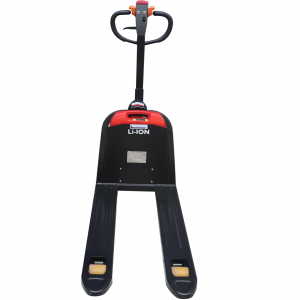

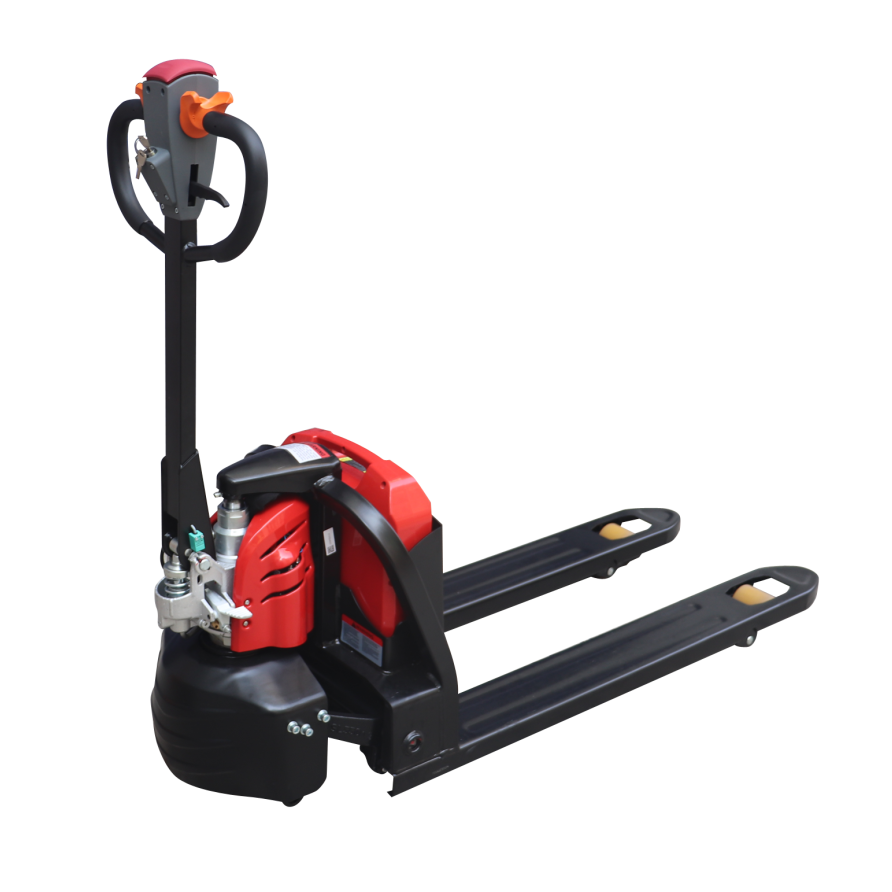

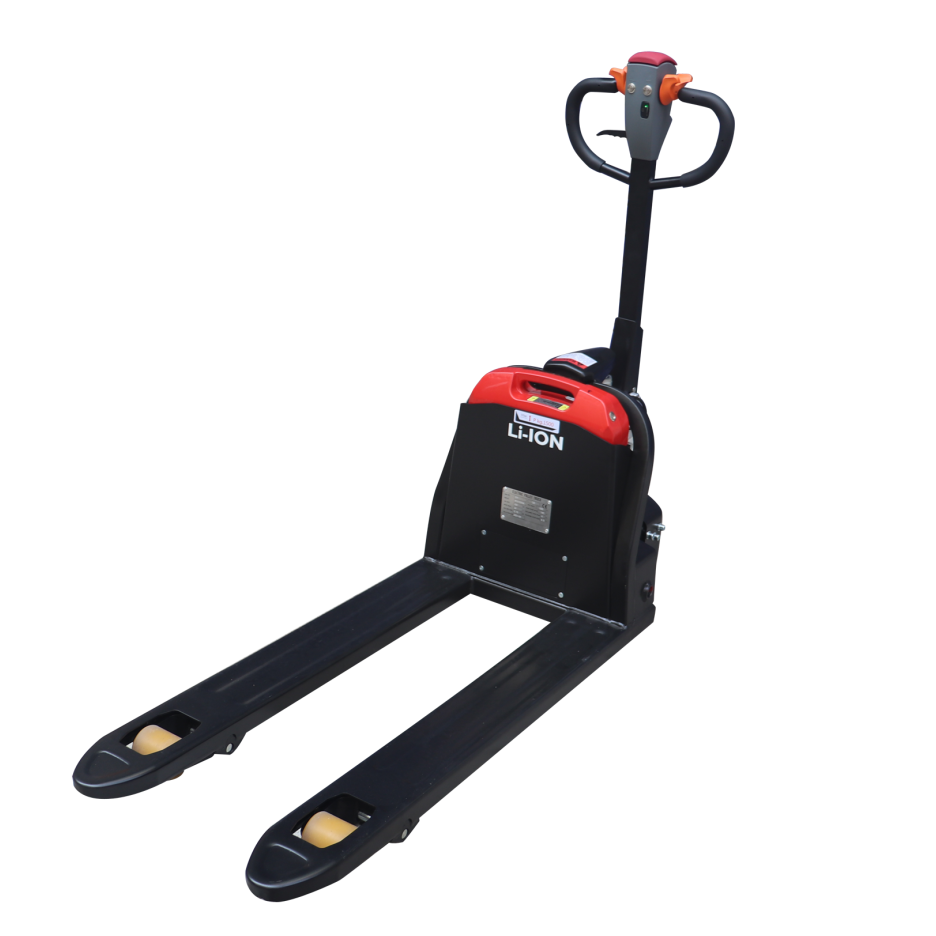

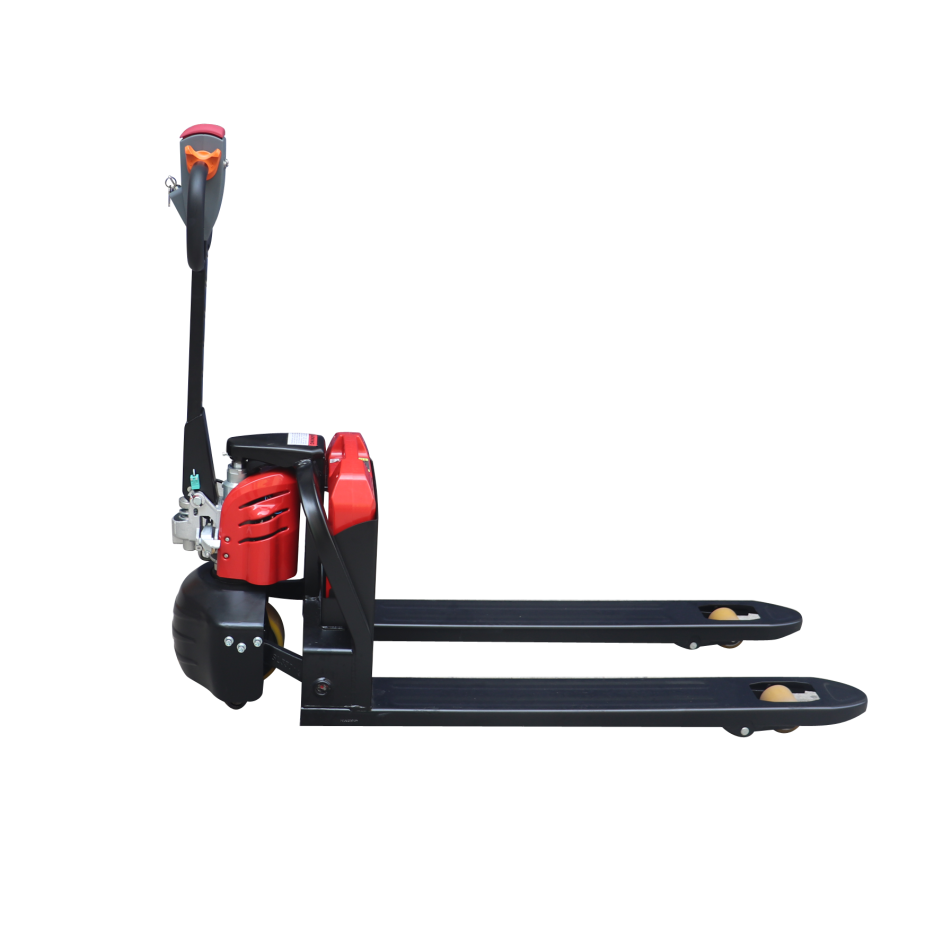

electric pallet truck，electric pallet Jack，electric forklift
1.the truck is simple and dexterous ,with small turning radius and small weight,it is suitable for ultra-narrow channel operation;
2. the truck has compact and reliable structure,the oil pipeline and line are wrapped in the truck body which is safe and beautiful and convenient for user maintenance;
3. the truck adopt integrated handle design intergrating key switch and electric meter which is simple and comfortable for operation;
4. hand-held lithium battery makes battery changing easier and more convenient;
5. standing configuration of emergency stop switch and emergency reverse device ensure truck safety;
6. the truck is assembled with power-off braking function,the truck is braked as soon as the handle is loosened or pressed to the bottom;
7. electromagnetic is braking and motor braking are used to ensure the safety of driving
|
model |
unit |
EPT-15D |
|
power unit |
|
electric |
|
operation |
|
pedestrian |
|
rated traction weight |
Q(t) |
1.5 |
|
load centre |
c(mm) |
600 |
|
axie centre to fork face |
x(mm) |
944 |
|
wheel base |
y(mm) |
1243 |
|
service weight with battery |
(kg) |
142 |
|
wheels type |
|
PU |
|
driving wheel size |
φ*w(mm) |
φ210*70 |
|
bearing wheel size |
φ*w (mm) |
φ80*60 |
|
wheel ,number front /rear(x=driven) |
|
1*/4 |
|
track width |
b11(mm) |
400/535 |
|
lift |
h3 (mm) |
200 |
|
overall height (with handle) |
h14 (mm) |
740/1160 |
|
owered height |
h13(mm) |
85 |
|
overall length |
l1(mm) |
1603 |
|
length to fork face |
l2(mm) |
453 |
|
overall width |
b1/b2 (mm) |
550/685 |
|
channel width(1000mm*1200mm tray) |
ast (mm) |
1804 |
|
channel width (800mm*1200mm tray) |
ast(mm) |
1854 |
|
fork dimensions |
s/e/l(mm) |
50/150/1150 |
|
width of fork |
b5(mm) |
550/685 |
|
min. ground clearance |
m2(mm) |
35 |
|
min.turning radius |
wa(mm) |
1398 |
|
travel speed Laden /unladen |
(km/h) |
4.2/4.5 |
|
maximum climbing ability ,with/without load |
(%) |
44326 |
|
service brake |
|
electromagnetic |
|
drive motor ,60minute rating |
(kw) |
0.75 |
|
lifting motor rating at S3 15% |
(kw) |
0.8 |
|
battery according to DIN 43531/35/36A.B.C.no |
|
no |
|
battery voltage /rated capacity 24V |
(Ah) |
20 |
|
battery weight (5%) |
(kg) |
6 |
|
type of drive control |
|
DC |
|
noise level at operator's ear |
(dB(A)) |
≤70 |
|
steering type |
|
mechanical steering |
